Power

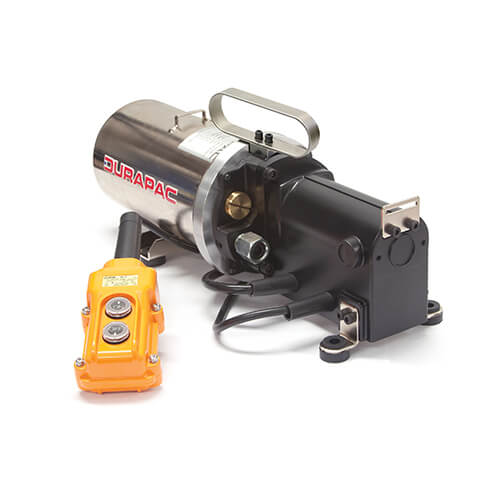

The power unit is driven by a 0.35 kW, 230 Volt or 115 Volt, 50/60 Hz single phase electric motor.
Operates at Any Angle
May be used at any angle due to the fully enclosed rubber lined reservoir.
Easily Portable
The power unit is lightweight and easily portable using the shoulder strap and handle.
Optional Pressure Switch
An optional pressure switch allows the cylinder to be stopped at set pressure and return automatically.
Remote Pendant
The remote pendant actuates Advance when ON switch is pressed and the motor starts, auto Retract when the ON switch is released.
Safety Valve
The pump features a factory set safety pressure relief valve.
| Model No. | Valve Type | Used with Cylinder | Electric Motor (50/60 Hz) | Pressure Rating (bar) | Motor kW @ 2,000 rpm | Voltage | Amps | 10 bar Flow Rate (Lpm) | 700 bar Flow Rate (Lpm) | Control Switch | Usable Oil Capacity (L) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SPES3502NO | Solenoid Auto Retract type | S/A | Commutator type | 700 | 0.35 | 230 | 2.5 | 2.0 | 0.2 | Remote ON/OFF | 1.6 | 8.7 |
| SPES3502NO-115VOLT | Solenoid Auto Retract type | S/A | Commutator type | 700 | 0.35 | 115 | 6.0 | 2.0 | 0.2 | Remote ON/OFF | 1.6 | 8.7 |
Piston Rod Speed v Cylinder Capacity (SPE 35 Series)
| Pressure Stage | Oil Flow (Lpm) | 10 Ton (mm per second) | 15 Ton (mm per second) | 20 Ton (mm per second) | 25 Ton (mm per second) | 30 Ton (mm per second) | 50 Ton (mm per second) | 75 Ton (mm per second) | 100 Ton (mm per second) | 150 Ton (mm per second) | 200 Ton (mm per second) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1st | 2.0 | 23.0 | 16.0 | 12.0 | 10.0 | 8.0 | 4.0 | 3.0 | 3.0 | - | - |
| 2nd | 0.2 | 2.0 | 1.6 | 1.2 | 1.0 | 0.8 | 0.4 | 0.3 | 0.3 | - | - |
SPE-Series Performance
 |
