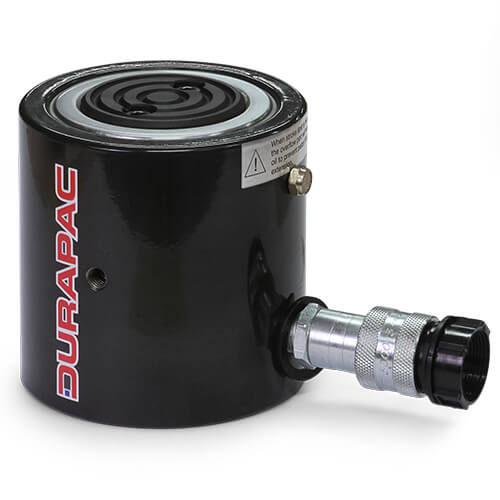

RSH-Series S/A, High Tonnage, Low Profile

The RSH-Series is a Single Acting, Load Return, High Tonnage Cylinder offering the lowest collapsed height. They are ideally suited for use in civil construction, heavy jacking and other high load applications in confined spaces.

RSH-Group

Hard Chrome Plated Bore & Piston Rod

These cylinders feature a hard chrome cylinder bore and piston rod for maximum corrosion resistance.

Bronze Overlay

The bronze overlay on the piston bearing area resists side load induced
damage and extends cylinder life.

Overflow Port

An overflow port serves as a maximum
stroke limiter.

Hardened Grooved Saddle

The removable grooved saddle and oil overflow port that restricts piston stroke are standard on all models. There are also optional TSX tilt saddles.

Side Mounted Eye Bolts

All cylinders in this range have side mounted eye bolts for lifting and positioning.

Piston Rod Wiper

The piston rod wiper reduces contaminants.
RSH-Group
INSTRUCTIONS
SPECIFICATIONS
CATALOGUE
Model Number Cylinder Capacity ton* Cylinder Capacity kN Stroke (mm) Cylinder Effective Area (cm2) Oil Capacity (cm3) Collapsed Height (mm) Extended Height (mm) Outside Diameter (mm) Cylinder Bore Diameter (mm)Piston Rod Diameter (mm)Base to Advance Port (mm)Standard Saddle Diameter (mm)Saddle Protrusion from Piston Rod (mm)Depth of Piston Rod Hole (mm)Weight (kg)Optional Tilt Saddle Model NumberOptional Tilt Saddle Diameter (mm)Optional Tilt Saddle Height (mm)**Model NumberHandle Type
RSH-502 504965070.835412817812595.095.0307121314TSX-1007124RSH-502♦
RSH-504 5049610070.870817827812595.095.0307121318TSX-1007124RSH-504♦
RSH-506 5049615070.81,06322837812595.095.0307121323TSX-1007124RSH-506♦
RSH-508 5049620070.81,41727847812595.095.0307121328TSX-1007124RSH-508♦
RSH-5010 5049625070.81,77132757712595.095.0307121333TSX-1007124RSH-5010♦
RSH-5012 5049630070.82,12537867812595.095.0307121338TSX-1007124RSH-5012♦
RSH-1002 10092950132.7663143193165130.0130.0307121324TSX-1007124RSH-1002♦
RSH-1004 100929100132.71,327193293165130.0130.0307121332TSX-1007124RSH-1004♦
RSH-1006 100929150132.71,990243393165130.0130.0307121340TSX-1007124RSH-1006♦
RSH-1008 100929200132.72,653293493165130.0130.0307121349TSX-1007124RSH-1008♦
RSH-10010 100929250132.73,317343593165130.0130.0307121358TSX-1007124RSH-10010♦
RSH-10012 100929300132.73,980392692165130.0130.0307121366TSX-1007124RSH-10012♦
RSH-1502 1501,39050198.5992165215205159.0159.03913022543TSX-20013020RSH-1502♦
RSH-1504 1501,390100198.51,985215315205159.0159.03913022555TSX-20013020RSH-1504♦
RSH-1506 1501,390150198.52,977265415205159.0159.03913022569TSX-20013020RSH-1506♦
RSH-1508 1501,390200198.53,969315515205159.0159.03913022582TSX-20013020RSH-1508♦
RSH-15010 1501,390250198.54,961365615205159.0159.03913022595TSX-20013020RSH-15010♦
RSH-15012 1501,390300198.55,954414714205159.0159.039130225108TSX-20013020RSH-15012♦
RSH-2002 2001,85950265.51,327193243235183.9183.95013022566TSX-20013020RSH-2002♦
RSH-2006 2001,859150265.53,982293443235183.9183.950130225101TSX-20013020RSH-2006♦
RSH-20012 2001,859300265.57,964443743235183.9183.950130225154TSX-20013020RSH-20012♦
RSH-2502 2502,56250365.91,830193243275215.9215.95015022590TSX-25015021RSH-2502♦
RSH-2506 2502,562150365.95,489293443275215.9215.950150225137TSX-25015021RSH-2506♦
RSH-25012 2502562300365.910977443743275215.9215.950150225208TSX-25015021RSH-25012♦
RSH-3002 3003,19350455.92,280235285310241.024159139525137TSX-30019575RSH-3002♦
RSH-3006 3003,193150455.96,839335485310241.024159139525198TSX-30019575RSH-3006♦
RSH-30012 3003,193300455.913,678485785310241.024159139525288TSX-30019575RSH-30012♦
RSH-4002 4003,91950559.62,798265315350267.026770159525200TSX-40022585RSH-4002♦
RSH-4006 4003,919150559.68,394365515350267.026770159525275TSX-40022585RSH-4006♦
RSH-40012 4003,919300559.616,789515815350267.026770159525390TSX-40022585RSH-40012♦
RSH-5002 5005,11850730.73,654295345400305.1305.180179525289TSX-50025091RSH-5002♦
RSH-5006 5005,118150730.710,961395545400305.1305.180179525390TSX-50025091RSH-5006♦
RSH-50012 5005,118300730.721,922545845400305.1305.180179525540TSX-50025091RSH-50012♦
RSH-6002 6005,98350854.34,272310360430329.9329.985194525350TSX-60027596RSH-6002♦
RSH-6006 6005,983150854.312,815410560430329.9329.985194525465TSX-60027596RSH-6006♦
RSH-60012 6005,983300854.325,630560860430329.9329.985194525640TSX-60027596RSH-60012♦
RSH-8002 8008,238501,176.35,881355405505387.1387.1100224525549TSX-800320123RSH-8002♦
RSH-8006 8008,2381501,176.317,644455605505387.1387.1100224525709TSX-800320123RSH-8006♦
RSH-80012 8008,2383001,176.335,289605905505387.1387.1100224525950TSX-800320123RSH-80012♦
RSH-10002 1,00010,260501,465.77,329385435560432.1432.1110249525729TSX-1000360136RSH-10002♦
RSH-10006 1,00010,2601501,465.721,985485635560432.1432.1110249525921TSX-1000360136RSH-10006♦
RSH-100012 1,00010,2603001,465.743,970635935560432.1432.11102495251,210TSX-1000360136RSH-100012♦
* Nominal Cylinder Capacity in ton - see kN values for actual capacity
** Total cylinder collapsed height with optional tilt saddle equals (Cylinder Height - Saddle Protrusion + Tilt Saddle Height)
HANDLE TYPES: ♣ WELDED ♦ EYEBOLT ♥ REMOVABLE STRAP HANDLE ♠ THREAD

RSH-Series Seal Kits

Seal Kit to Suit Part Number
RSH 50 TON SERIES ZAM1073
RSH 100 TON SERIES ZAM1069
RSH 150 TON SERIES ZAM1070
RSH 200 TON SERIES ZAM1071
RSH 250 TON SERIES ZAM1072
