Lock Ring

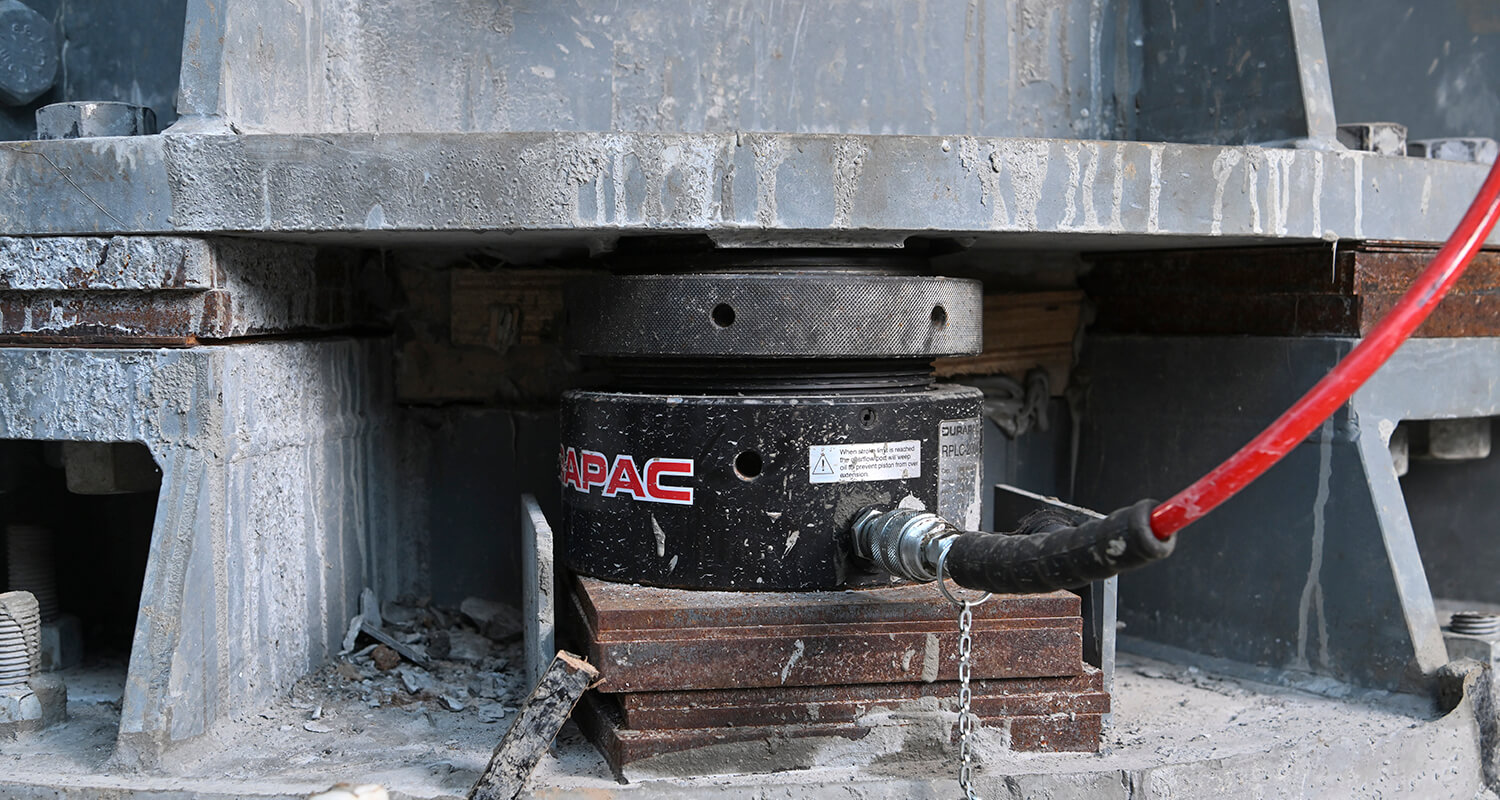

When the lock ring is screwed down and engaged with the cylinder body, the load can be held mechanically for extended periods. Hoses and pumps can be removed until lowering is required.
Hard Chrome Plated Bore
A hard chrome cylinder bore maximises corrosion-resistance and cylinder life.
Overflow Port
The overflow port on the piston rod ensures the cylinder is not over-extended.
Low Friction Coating
The low friction coating on the piston rod and lock ring resists corrosion and abrasion.
Hardened Grooved Tilt Saddle
The hardened grooved tilt saddle prevents piston rod damage and comes standard on all models.
Powder Coated Finish
The powder coated finish enhances appearance and reduces corrosion.
| Model Number | Cylinder Capacity ton* | Cylinder Capacity kN | Stroke (mm) | Cylinder Effective Area (cm2) | Oil Capacity (cm3) | Collapsed Height (mm) | Extended Height (mm) | Outside Diameter (mm) | Cylinder Bore Diameter (mm) | Piston Rod Diameter (mm)** | Base to Advance Port (mm) | Standard Saddle Diameter (mm) | Saddle Protrusion from Piston Rod (mm) | Tilt Saddle Maximum Angle | Lock Ring Height (mm) | Weight (kg) | Model Number | Handle Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RPLC-602 | 60 | 606 | 50 | 86.6 | 433 | 125 | 175 | 140 | 105.0 | TR104x4 | 19 | 96 | 6 | 5° | 28 | 15 | RPLC-602 | ♦ |
| RPLC-1002 | 100 | 1,027 | 50 | 146.8 | 733 | 137 | 187 | 175 | 136.7 | TR136x6 | 21 | 126 | 8 | 5° | 31 | 26 | RPLC-1002 | ♦ |
| RPLC-1602 | 160 | 1,619 | 45 | 231.3 | 1,040 | 148 | 193 | 220 | 171.6 | TR171x6 | 27 | 160 | 9 | 5° | 40 | 44 | RPLC-1602 | ♦ |
| RPLC-2002 | 200 | 1,999 | 45 | 285.6 | 1,285 | 155 | 200 | 245 | 190.7 | TR190x6 | 30 | 180 | 10 | 5° | 43 | 57 | RPLC-2002 | ♦ |
| RPLC-2502 | 250 | 2,567 | 45 | 366.8 | 1,650 | 159 | 204 | 275 | 216.1 | TR216x6 | 32 | 200 | 11 | 5° | 44 | 74 | RPLC-2502 | ♦ |
| RPLC-4002 | 400 | 3,916 | 45 | 559.5 | 2,516 | 178 | 223 | 350 | 266.9 | TR266x6 | 39 | 250 | 11 | 4° | 55 | 134 | RPLC-4002 | ♦ |
| RPLC-5002 | 500 | 5,114 | 45 | 730.6 | 3,286 | 192 | 237 | 400 | 305.0 | TR305x6 | 48 | 290 | 10 | 3° | 62 | 189 | RPLC-5002 | ♦ |
** TR is a metric trapezoidal thread
HANDLE TYPES: ♣ WELDED ♦ EYEBOLT ♥ REMOVABLE STRAP HANDLE ♠ THREAD
RPLC-Series Seal Kits
| Seal Kit to Suit | Part Number |
|---|---|
| RPLC 60 TON SERIES | ZAM1068 |
| RPLC 100 TON SERIES | ZAM1062 |
| RPLC 160 TON SERIES | ZAM1063 |
| RPLC 200 TON SERIES | ZAM1064 |
| RPLC 250 TON SERIES | ZAM1065 |
| RPLC 400 TON SERIES | ZAM1066 |
| RPLC 500 TON SERIES | ZAM1067 |
