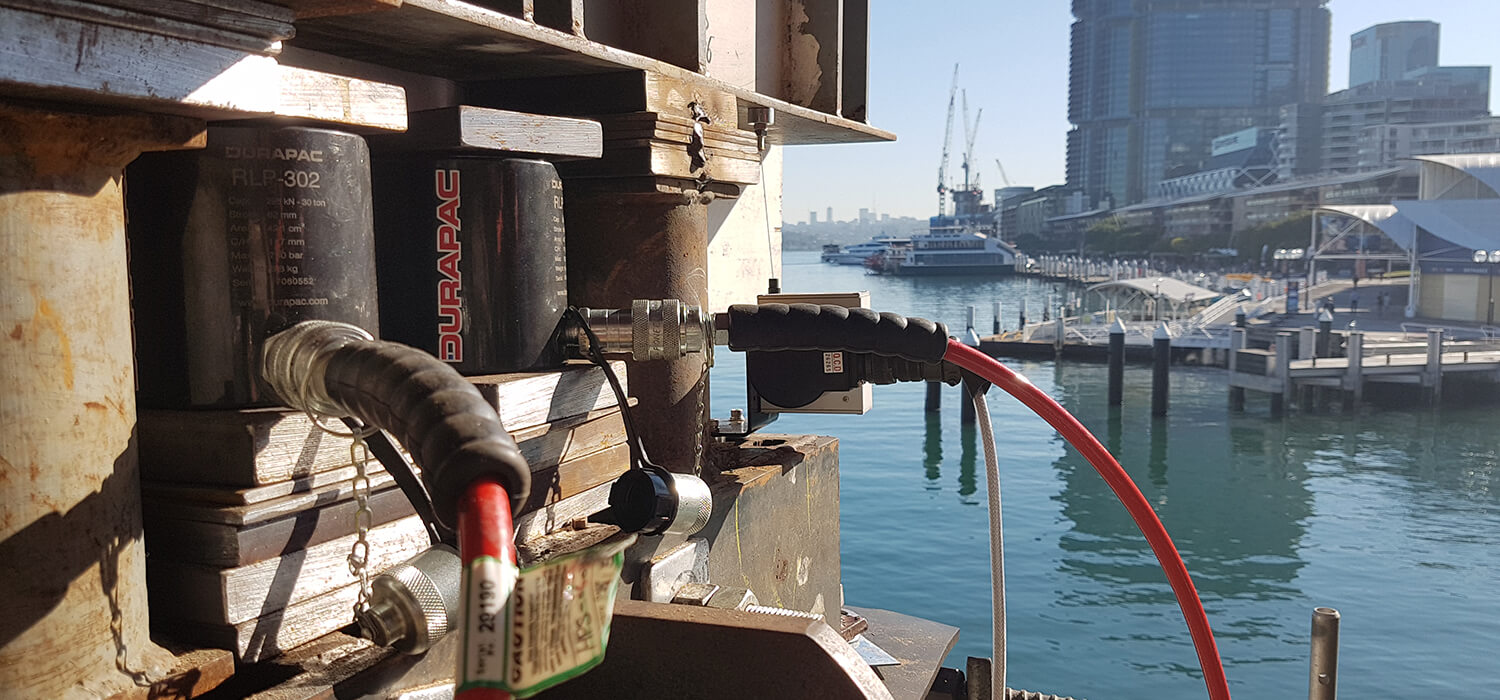

Hard Chrome
A hard chrome cylinder bore and piston rod maximises corrosion-resistance and cylinder life.
Bronze Overlay
The piston bearing area is bronze overlaid to reduce scoring and increase service life.
Tilt Saddles
Optional TSL tilt saddles are available for
all models.
Return Spring
The return spring is sized to ensure efficient
piston rod return and maximum spring life.
Hardened Grooved Saddle
The grooved saddle is hardened to prevent piston rod damage.
Gland Nut
Low friction coating on the gland nut withstands full dead end loading.
| Model Number | Cylinder Capacity ton* | Cylinder Capacity kN | Stroke (mm) | Cylinder Effective Area (cm2) | Oil Capacity (cm3) | Collapsed Height (mm) | Extended Height (mm) | Outside Diameter (mm) | Cylinder Bore Diameter (mm) | Piston Rod Diameter (mm) | Base to Advance Port (mm) | Saddle Protrusion from Cylinder Body (mm) | Tilt Saddle Mounting Thread (mm) | Tilt Saddle Mounting Thread Length (mm) | Bolt Circle Diameter (mm) | Weight (kg) | Optional Tilt Saddle Model Number | Model Number | Handle Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

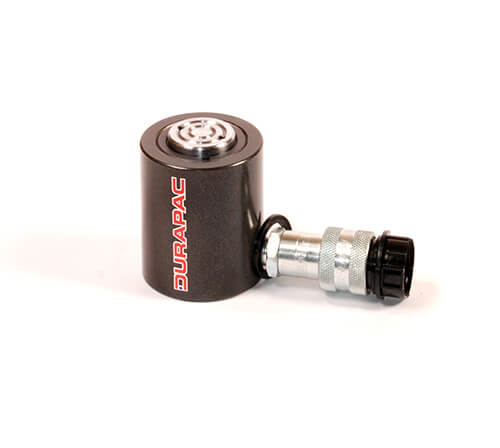

| RLP-101 | 10 | 101 | 38 | 14.5 | 55 | 88 | 126 | 69 | 42.9 | 38.1 | 17 | 5 | M4 x 0.7 | 8 | 26 | 4.1 | TSL-10 | RLP-101 | - |

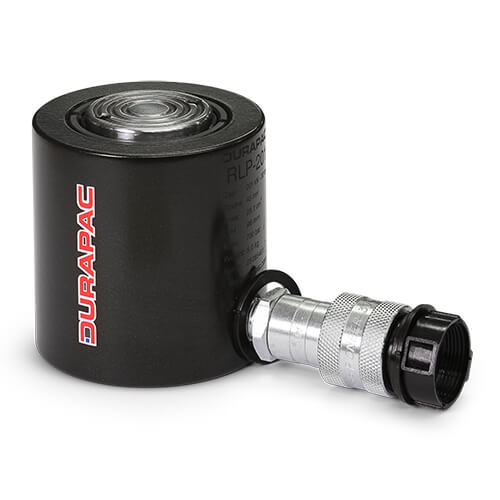

| RLP-201 | 20 | 201 | 45 | 28.7 | 129 | 98 | 143 | 92 | 60.5 | 50.8 | 17 | 3 | M5 x 0.8 | 8 | 39 | 5.0 | TSL-20 | RLP-201 | - |
| RLP-302 | 30 | 295 | 62 | 42.1 | 261 | 117 | 179 | 101 | 73.2 | 66.5 | 19 | 3 | M5 x 0.8 | 8 | 39 | 6.8 | TSL-20 | RLP-302 | - |
| RLP-502 | 50 | 435 | 60 | 62.1 | 372 | 122 | 182 | 124 | 88.9 | 69.8 | 23 | 2 | M5 x 0.8 | 8 | 39 | 10.9 | TSL-20 | RLP-502 | ♣ |
| RLP-1002 | 100 | 887 | 57 | 126.7 | 722 | 141 | 198 | 165 | 127.0 | 92.2 | 31 | 1 | M8 x 1.25 | 10 | 55 | 22.7 | TSL-100 | RLP-1002 | ♣ |
HANDLE TYPES: ♣ WELDED ♦ EYEBOLT ♥ REMOVABLE STRAP HANDLE ♠ THREAD
RLP-Series Seal Kits
| Seal Kit to Suit | Part Number |
|---|---|
| RLP 10 TON SERIES | ZAM1057 |
| RLP 20 TON SERIES | ZAM1059 |
| RLP 30 TON SERIES | ZAM1060 |
| RLP 50 TON SERIES | ZAM1061 |
| RLP 100 TON SERIES | ZAM1058 |
