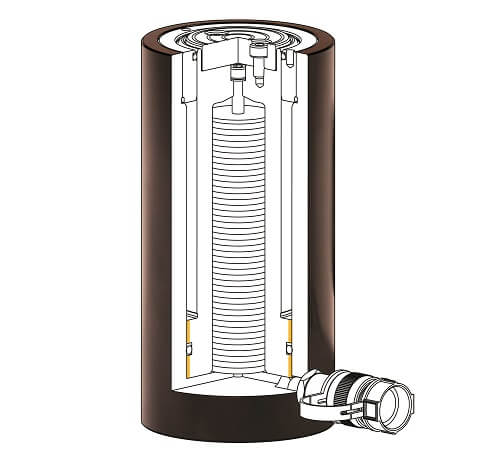

Hard Chrome
A hard chrome cylinder bore and piston rod maximises corrosion-resistance and cylinder life.
Bronze Overlay
The piston bearing area is bronze overlaid to reduce side load induced damage and extend cylinder life.
Hardened Grooved Saddle
The grooved saddle is hardened to prevent piston rod damage. Removable hardened saddles are standard.
Return Spring
The return spring is sized to ensure efficient piston rod return and maximum spring life.
Gland Nut
Low friction coating on the gland nut withstands full dead end loading.
Powder Coated Finish
The powder coated finish enhances appearance and reduces corrosion.
| Model Number | Cylinder Capacity ton* | Cylinder Capacity kN | Stroke (mm) | Cylinder Effective Area (cm2) | Oil Capacity (cm3) | Collapsed Height (mm) | Extended Height (mm) | Outside Diameter (mm) | Cylinder Bore Diameter(mm) | Piston Rod Diameter(mm) | Base to Advance Port (mm) | Standard Saddle Diameter (mm) | Weight (kg) | Model Number | Handle Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

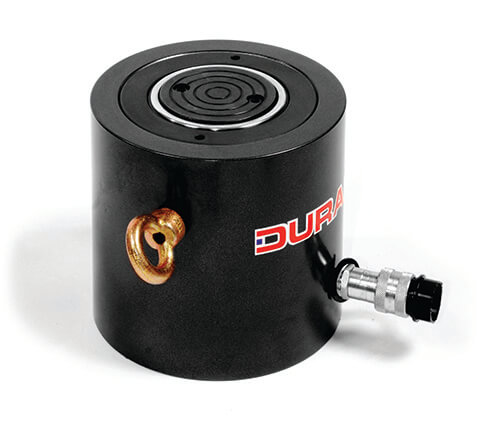

| RJ-1502 | 150 | 1,407 | 50 | 201.0 | 1,005 | 200 | 250 | 215 | 160 | 115 | 50 | 99 | 50 | RJ-1502 | ♦ ♥ |
| RJ-1504 | 150 | 1,407 | 100 | 201.0 | 2,010 | 250 | 350 | 215 | 160 | 115 | 50 | 99 | 60 | RJ-1504 | ♦ ♥ |
| RJ-2002 | 200 | 1,984 | 50 | 283.4 | 1,417 | 200 | 250 | 255 | 190 | 135 | 50 | 115 | 72 | RJ-2002 | ♦ ♥ |
| RJ-2004 | 200 | 1,984 | 100 | 283.4 | 2,834 | 250 | 350 | 255 | 190 | 135 | 50 | 115 | 85 | RJ-2004 | ♦ ♥ |
HANDLE TYPES: ♣ WELDED ♦ EYEBOLT ♥ REMOVABLE STRAP HANDLE ♠ THREAD
RJ-Series Seal Kits
| Seal Kit to Suit | Part Number |
|---|---|
| RJ 150 TON SERIES | ZAM1052 |
| RJ 200 TON SERIES | ZAM1054 |
