Hard Chrome Plated Piston Rod

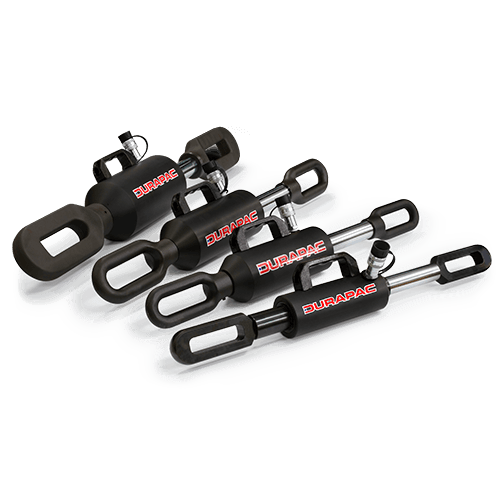

All RAP-Series cylinders feature a hard chrome steel piston rod.
Bronze Overlay
Bronze overlay on the piston bearing area.
Lightweight Aluminium Body
The body is lightweight aluminium for maximum portability.
Removable Clevis Eyes
Clevis eyes can be removed to allow use of the body and piston rod threads.
Return Spring
Return spring is used to ensure efficient piston rod return and maximum spring life.
Perfect Power Option
Durapac's P-2200A lightweight aluminium hand pump is the perfect choice when portable manual power is desired.
| Model Number | Cylinder Capacity ton* | Cylinder Capacity kN | Stroke (mm) | Cylinder Effective Area (cm2) | Oil Capacity (cm3) | Extended Height (mm) | Clevis Length (mm) | Clevis Eye Height (mm) | Clevis Eye Length (mm) | Piston Rod Diameter (mm) | Cylinder Diameter (mm) | Port Thread Type | Weight (kg) | Base Thread | Piston Rod Thread | Model Number | Handle Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

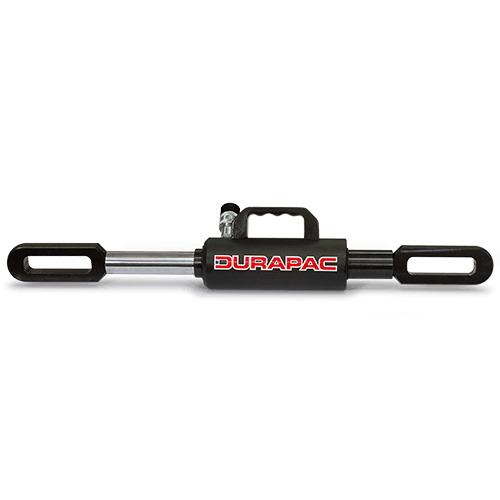

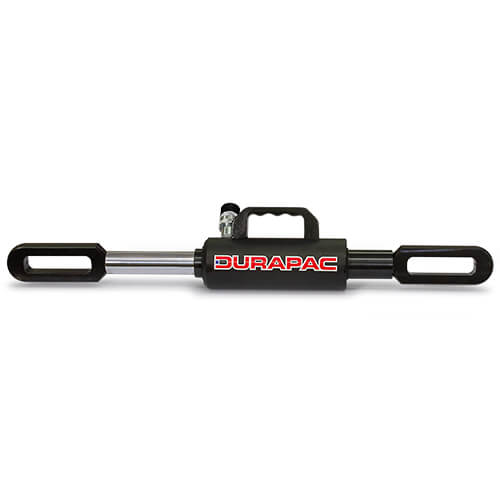

| RAP-106 | 10 | 109 | 150 | 15.7 | 236 | 763 | 171 | 30 | 115 | 40 | 88 | 3/8"-NPTF | 10.3 | M28 x 2 female | M28 x 2 female | RAP-106 | ♠ |
| RAP-206 | 20 | 197 | 150 | 28.2 | 424 | 807 | 215 | 35 | 120 | 45 | 108 | 3/8"-NPTF | 13.5 | M39 x 3 female | M39 x 3 male | RAP-206 | ♠ |
| RAP-306 | 30 | 307 | 150 | 44.0 | 660 | 849 | 226 | 44 | 110 | 50 | 125 | 3/8"-NPTF | 19.0 | M45 x 2.5 female | M45 x 2.5 male | RAP-306 | ♠ |

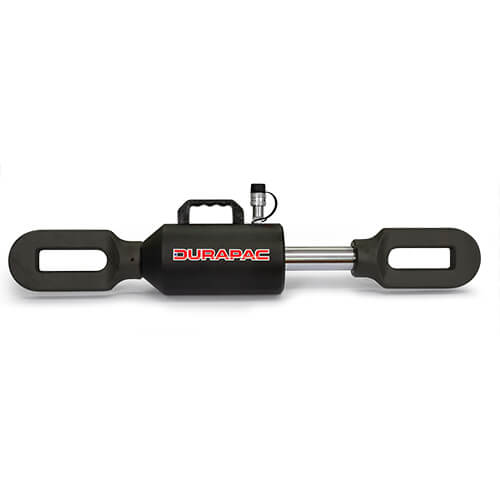

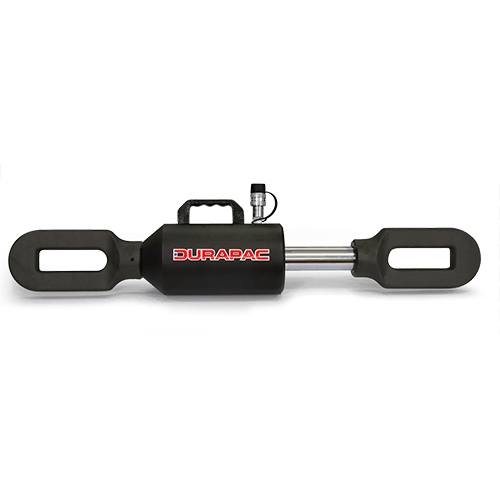

| RAP-506 | 50 | 504 | 150 | 72.1 | 1,082 | 897 | 273 | 50 | 150 | 54 | 158 | 3/8"-NPTF | 34.0 | M50 x 3 female | M50 x 3 male | RAP-506 | ♠ |
HANDLE TYPES: ♣ WELDED ♦ EYEBOLT ♥ REMOVABLE STRAP HANDLE ♠ THREAD
