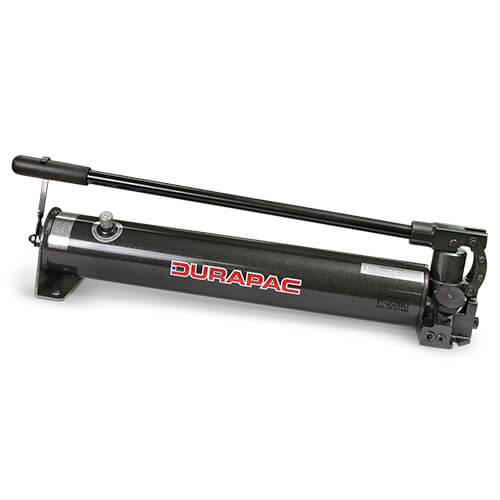

P-2260 Steel Bodied Hand Pumps

The P-2260 Steel Bodied Hand Pump is a single-acting, two speed, two-way valve design that features a unique oil reservoir breather incorporating a pressure relief valve to guard against accidental over pressurisation of the oil reservoir. They are a robustly built, industry proven performer and the perfect choice where manual, portable hydraulic power is required.

Reservoir Breather

It features a unique oil reservoir breather incorporating a pressure relief valve to guard against accidental over pressurisation of the oil reservoir.

Ease of Handling

The pumps have large, easy to grip external pressure release knobs.

Carry Handle

The pump body incorporates a convenient carry handle.

Proven Performer

The pump is a robustly built industry proven performer.

Safety Valve

The pump features a factory set safety pressure relief valve.

Ease of Operation

The low handle effort provides ease of operation.
Model Number Operation Used with Cylinder Valve Type Pressure Rating (bar) 1st Stage Pressure Rating (bar) 2nd StageUsable Oil Capacity (cc) Oil Volumes per Stroke (cc) 1st Stage Oil Volumes per Stroke (cc) 2nd StageOil Port Thread Max. Handle Effort (kg) Weight with Oil (kg)
P-2260 Two Speed S/A 2 Way 28.07002,60030.03.03/8"-NPTF 3613.5

P-2260 Cylinder Capacity v Pump Handle Strokes

Cylinder Capacity (ton)510152025305075100150200250
P-2260 - 1st Pressure Stage - Movement* (mm) 48.020.714.810.69.07.14.22.92.31.51.0-
P-2260 - 2nd Pressure Stage - Movement* (mm) 4.82.11.51.10.90.70.40.30.20.20.1-
* mm of movement for each stroke of the pump handle
- not recommended
